About the grooved acoustic panel in order to achieve a high acoustic absorption coefficient and a beautiful aesthetics .
At the technical level it has a high absorption cofeeicient .
Aesthetically it has a linear design , elegant and discreet , very suitable for acoustic conditionning that requires a high level
Grooved acoustic panel solutions , a clean , linear approach to acoustics .
Profiles are created with 2mm , 3mm and 4mm grooves with different spacing options .
For the acoustic panel there are no limits but your imagination .
When your interiors require
1: beauty
2: durability
3: cost-effectiveness
that will delight to consider of the acoustic products , and we will work with you to customized a spece ,
large or small , to met the specific needs to created a acoustically superior , breathtakingly beautiful interiors .
With a wide array of styles and finishes to choose from ,
you can achieve the space you are envisioned for based on your project budget .
As an architect or designer , freshness of design can be a distinct competitive advantage .
| Pattern | 9/2mm / 13/3mm / 14/2mm / 28/4mm TBD |
| Finish | Real veneer / laminate / melamine |
| Core | Charcoal board / MDF |
| Fleece | Soundtex / Standard |
| Standard panel size | 2440*128mm / 2440*197mm / TBD |
| Standard core thick | 15mm / 18mm / TBD |
| Hole option | Standard |
| Edge option | Standard tongue & grooved |
Dimensions :
The panels can be manufactured to the desired size with approval shop drawings ,
thereby requiring no filed cutting for faster installation .
Brotex Acoustic leading production capabilities make the largest panels in the industry 3000*128/197mm as customized .
Edges Tongue & Grooved :
Sustainability :
FSC certified 70.8% pre-consumer recycled content
Acoustic Performance :
NRC = 0.8 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .
Grooved acoustic panel designed for easy assembly and durable use :
Indoor Air Quality :
TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
Fire performance :
Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .
Finish :
Avaliable in 16 pure colors & 32 woodgrain options
Wall installation info :

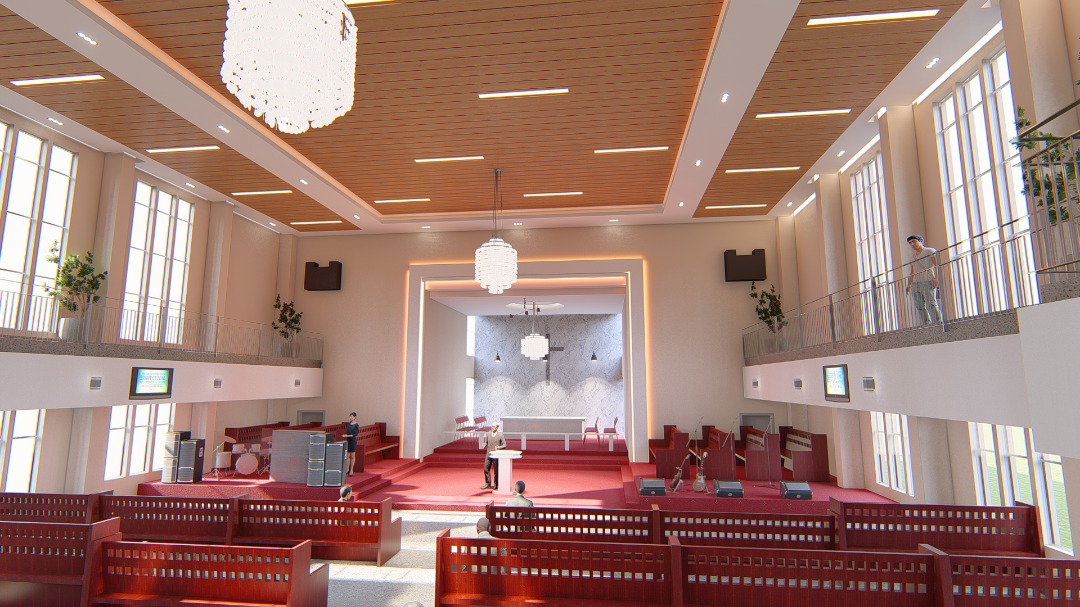

Ceiling job reference :
Please kindly contact us for more acoustic panel project inspire ideas .
|
|
28/4mm Melamine Oak Church Celing Tiles Linear Grooved Acoustic Wall Panels Sound Absorption Board Images
|
